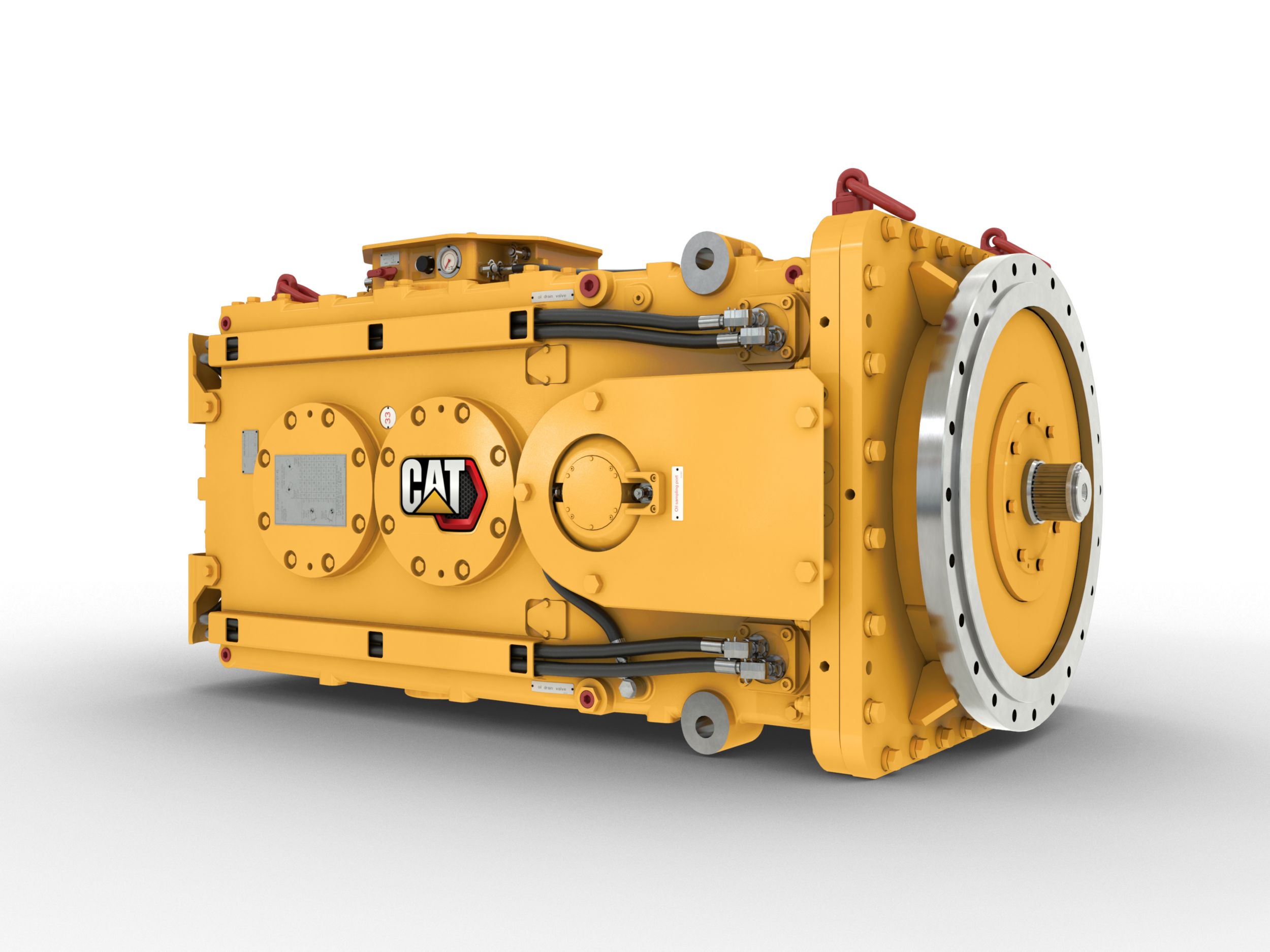

The typical application for the Cat® UEL45 V Gearbox is in Chain Type Longwall Machinery like Armored Face Conveyors (AFC) and Beam Stage Loader (BSL).
| Technical Data | |
| Motor Stalling Torque T Motor | 2 × T1 |
| Weight (gearbox without oil) | 18739.3 lb |
| Maximum Rated Output Torque | 331902.5 ft·lbf |
| Rated Continuous Input Power Maximum at n1 = 1,500 rpm | 1428 hp |
| Rated Continuous Input Power Maximum at n1 = 1,800 rpm | 1700 hp |
| Maximum Rated Input Speed | 1500 min-1 (1,800 rpm) |
| Oil filling volume at 0° position | 132 gal (US) |
| Oil temperature at rated power | 167 °F |
| Bearing Service Life (continuous operation at rated power, corresponds to 90% of calculated nominal service life) | 13,500 hr |
| Required Cooling Water Volume | 6.6 gal/min |
| Pressure Relief Valve Set to | 435.11 psi |
| Size of Water Supply Connections to Heat Exchanger (inlet and outlet) | DN20 |
| Maximum Cooling Water Inlet Temperature | 77 °F |
| Maximum Cooling Water Dirt Particle Size | 0,25 mm (0.0098 inch) |
| Required pH of the Cooling Water | 7 pH |
| Output Hub | N 260×10×30×24 DIN |
| Typical Application | |
| Used in | Chain Type Longwall Machinery like Armored Face Conveyors (AFC) and Beam Stage Loader (BSL) |
| Performance Data | |
| Rated Continuous Input Torque at 1,485 rpm and 1,782 rpm | Continuous Input Torque T1 (n=1,485/1,782 rpm) (f=50/60 Hz) |
| Nominal ratio (i) - 33 | 4978.5 ft·lbf |
| Rated Continuous Power at 1,485 rpm | Rated Continuous Power (n=1,485 rpm) (f=50 Hz) |
| Rated Continuous Power at 1,782 rpm | Rated Continuous Power (n=1,782 rpm) (f=60 Hz) |
| Nominal ratio (i) - 33 | 1680 hp |
