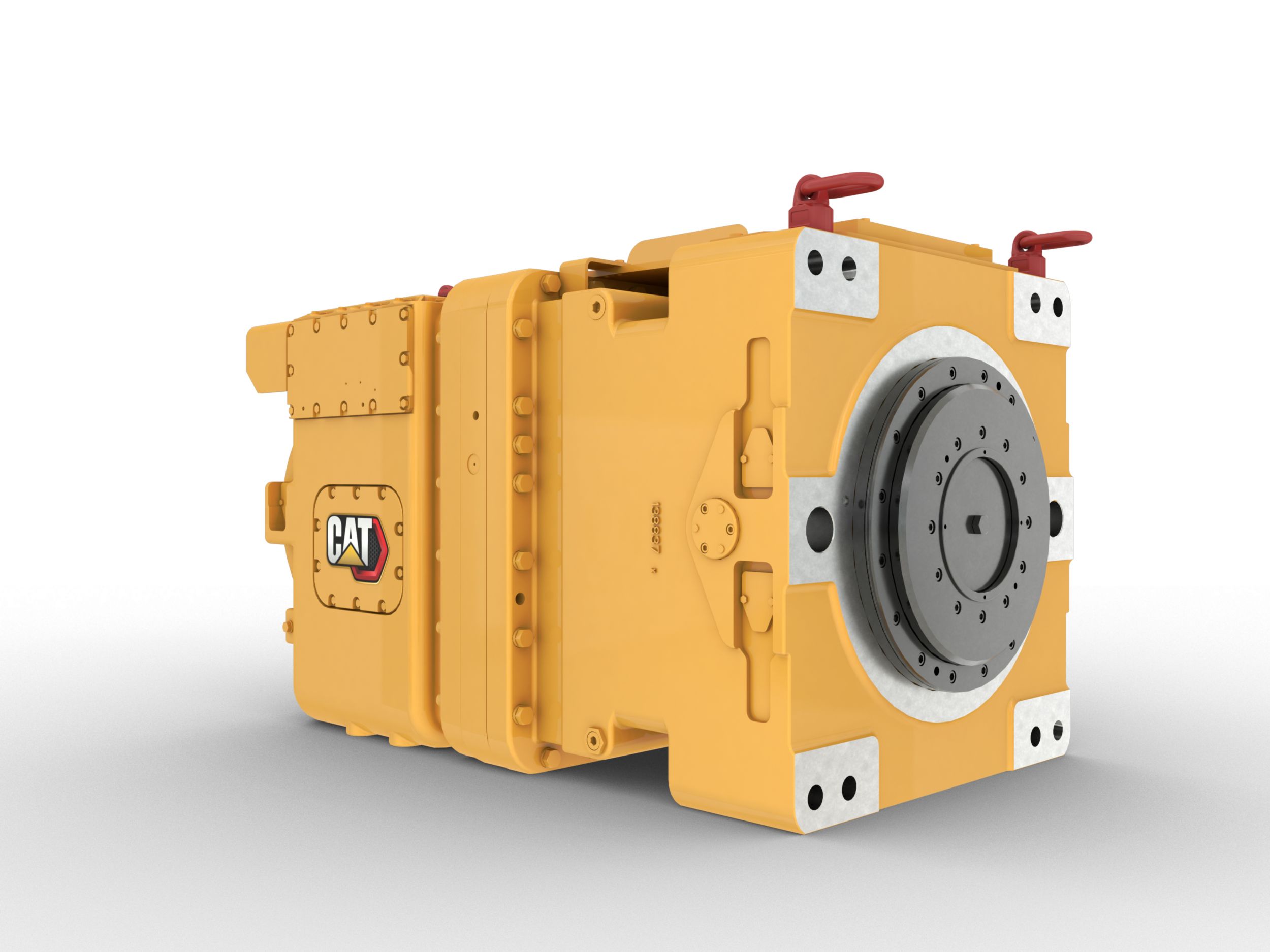

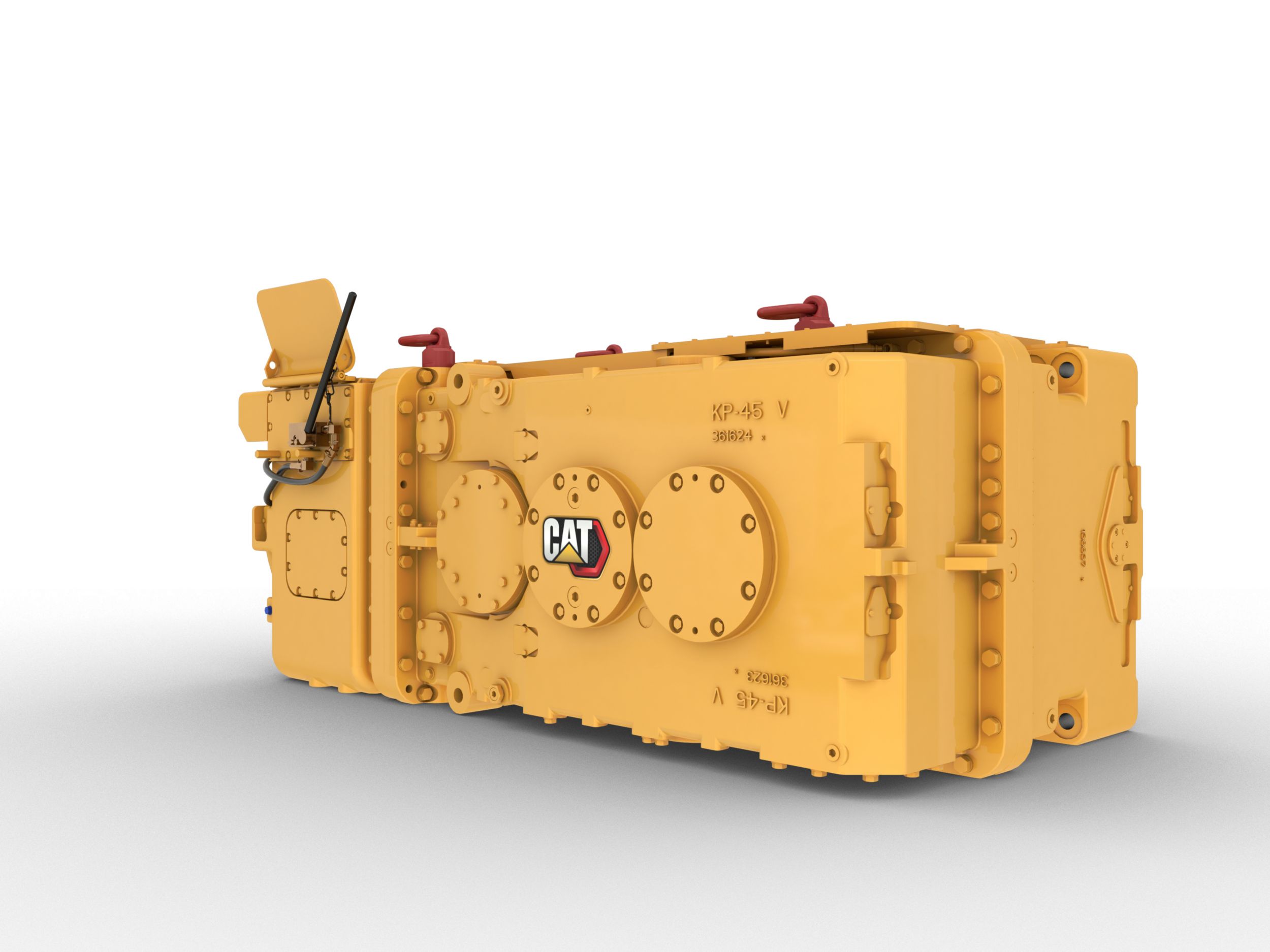

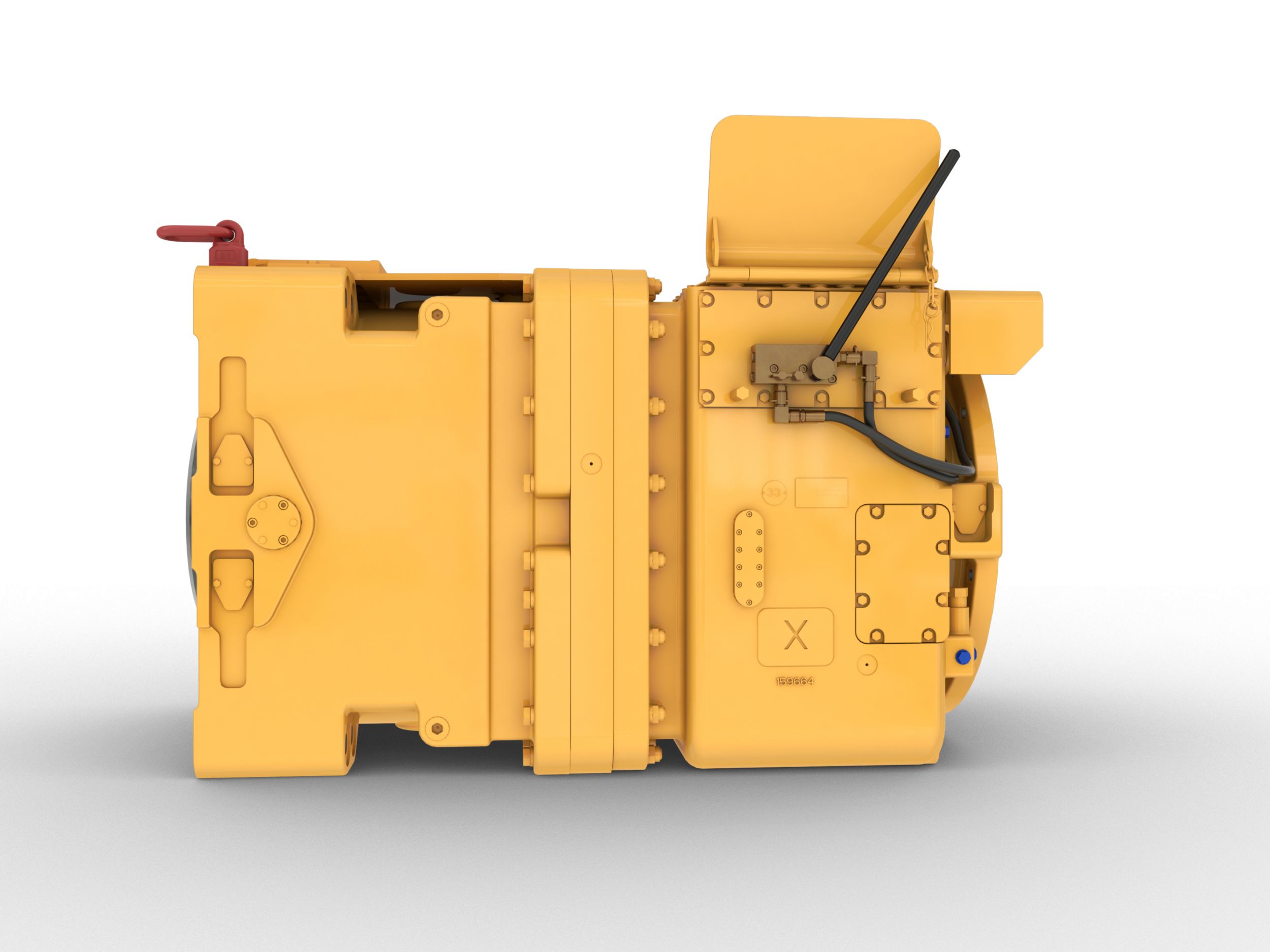

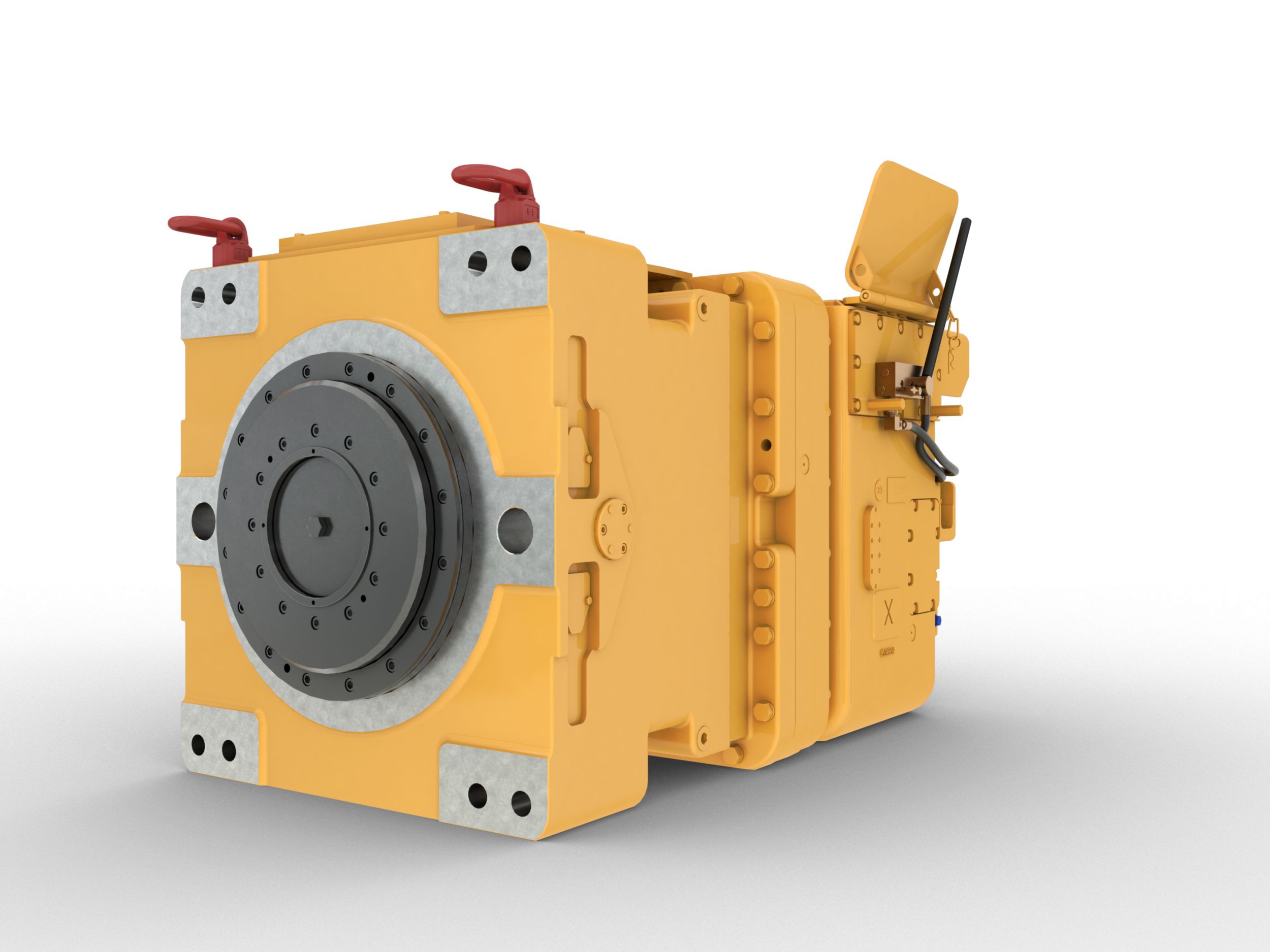

CST45 V Gearbox

.
🔍



Technical Specifications
360 View
Specifications
Maximum Input Speed - Motor Speed 1,782 rpm
Weight - Without Oil - In-line Drive System 13000 lb
Maximum Output Torque for a Short Duration (3 sec.) 331858 ft-lb
Requirements of Cooling Water
Required Cooling Water Quantity 6.6 gal/min
Maximum Water Inlet Temperature 25° C/298.15 K (77° F/298.15 K)
Capacity
P-45 V CST - Gearbox Weight - Without Oil 13000 lb
KP-45 V CST - Gearbox Weight - Without Oil 21380 lb
KP-45 V CST - Oil Quantity 193 gal (US)
P-45 V CST - Oil Quantity 114 gal (US)
Shaft Design
Input Shaft - Cylindrical DIN 5480-W 120×4
Output Shaft with Internal Toothing DIN 5480-N 260×10×30×24
Typical Application
Description Chain Type Longwall Machinery like Armored Face Conveyors (AFC)
Maximum Output Torque (for 3 sec) Tmax [N·m]
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 45 710 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 21 1,713 hp
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 33 1050 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 50 1,061 hp
KP-45 V CST/P-45 V CST 331858 lb/ft
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 28 1050 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 16 1050 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 28 1,713 hp
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39 820 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 16 1,713 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 45 1,158 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 33 1,713 hp
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 50 650 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39 1,338 hp
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 21 1050 kW
Dimensions
P-45 V CST - Height 41.7 in
P-45 V CST - Width 44.1 in
KP-45 V CST - Width 55.2 in
KP-45 V CST - Height 41.7 in
KP-45 V CST - Length 113.2 in
P-45 V CST - Length 66.8 in
