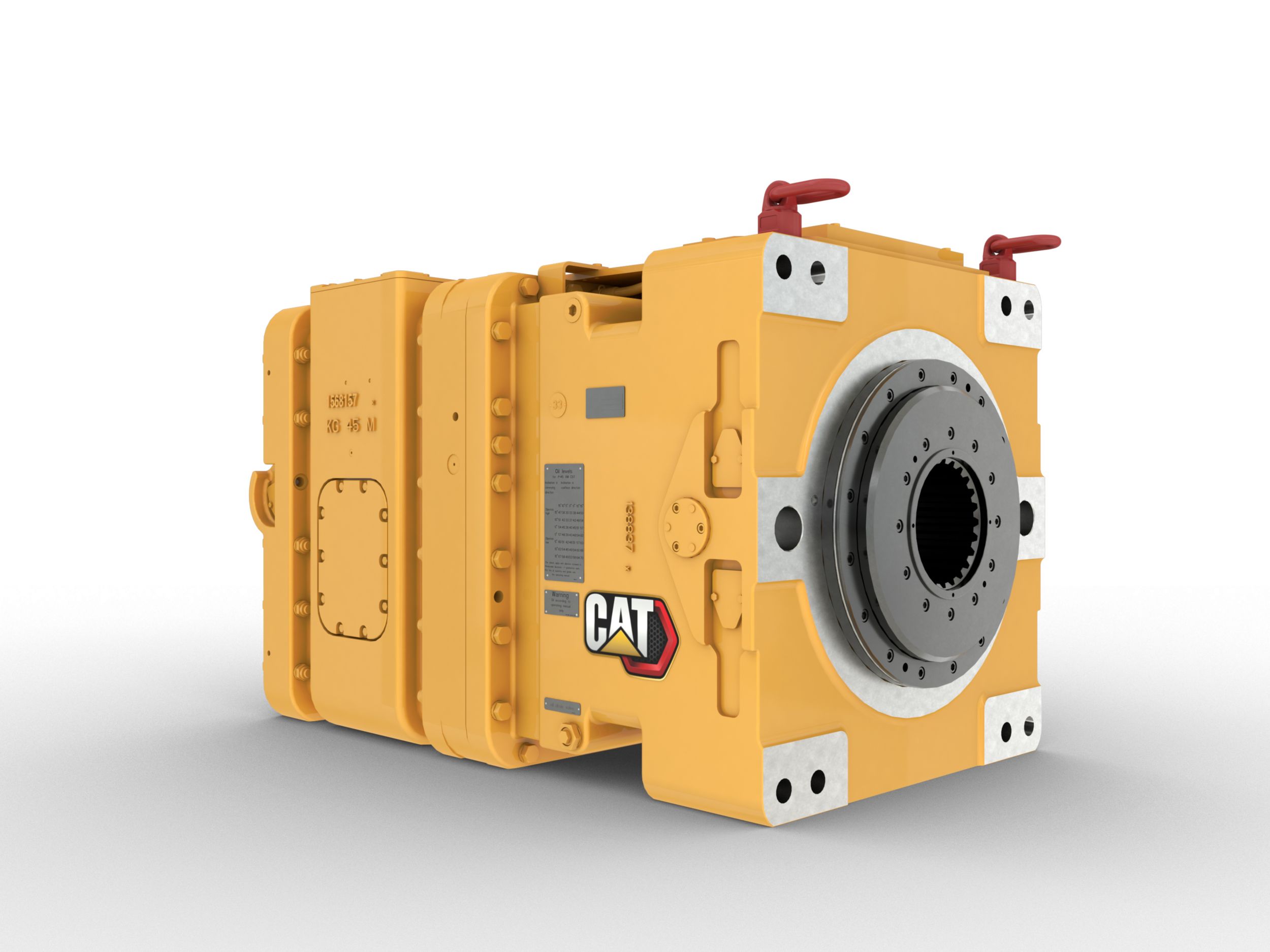

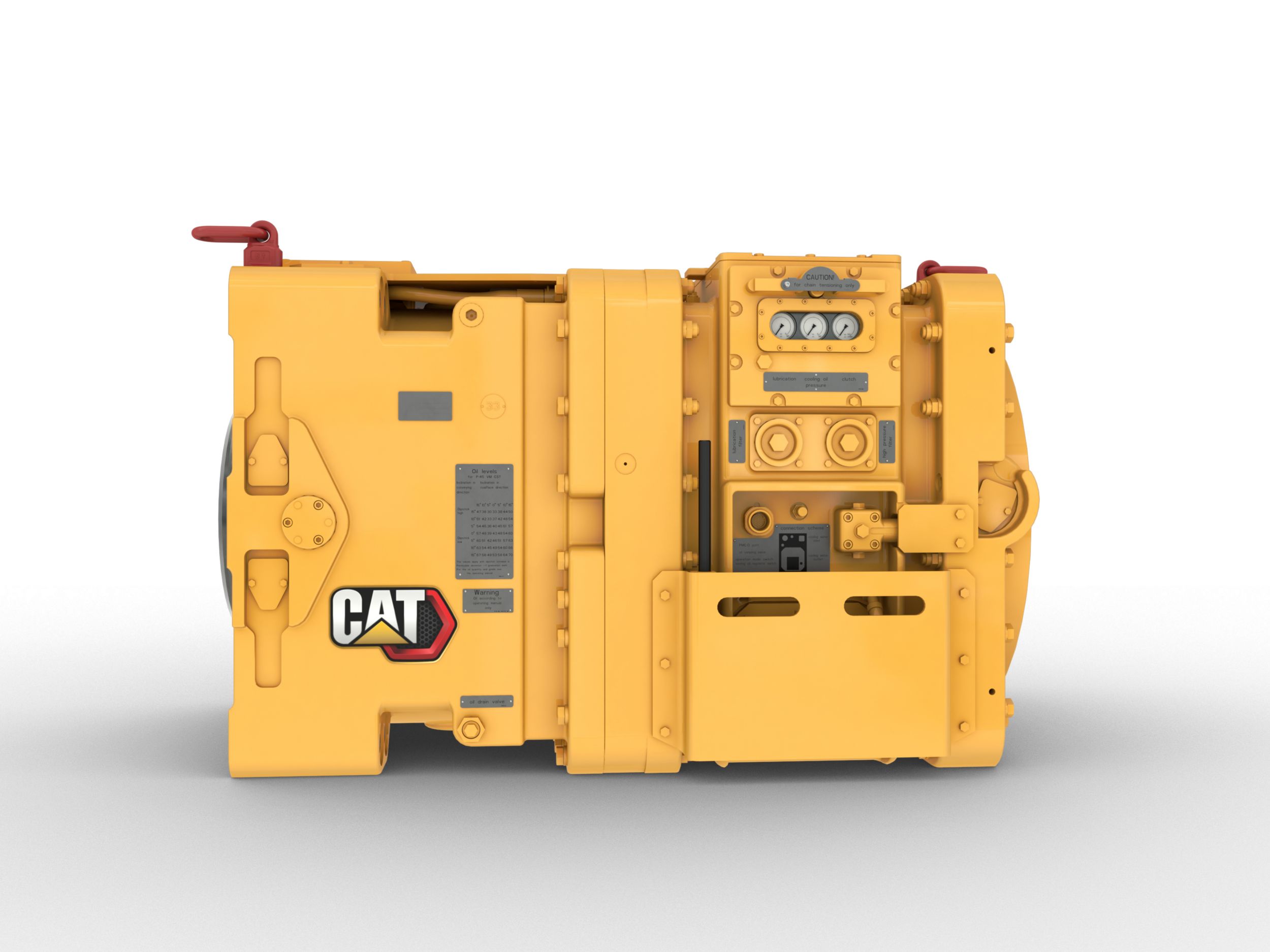

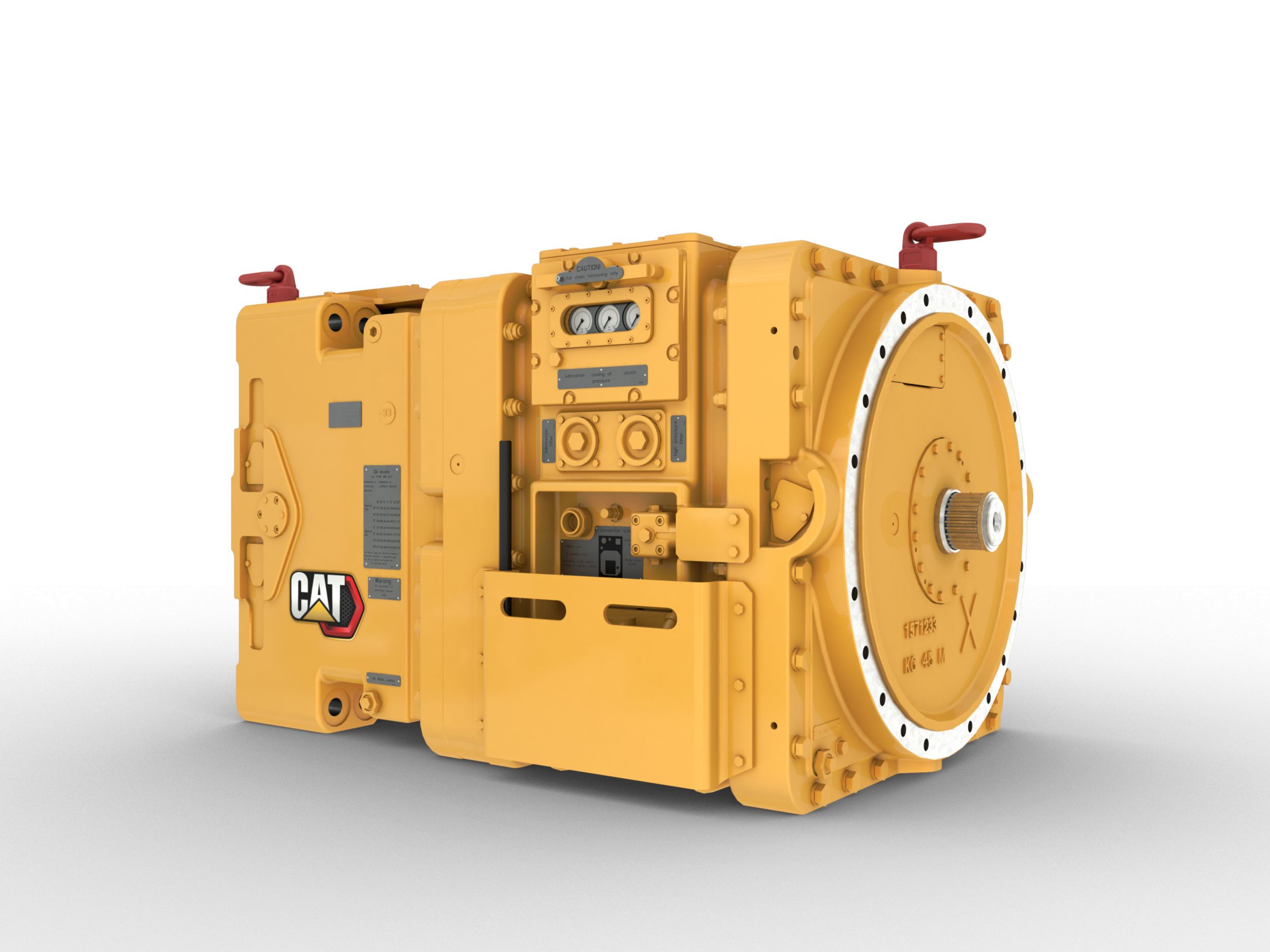

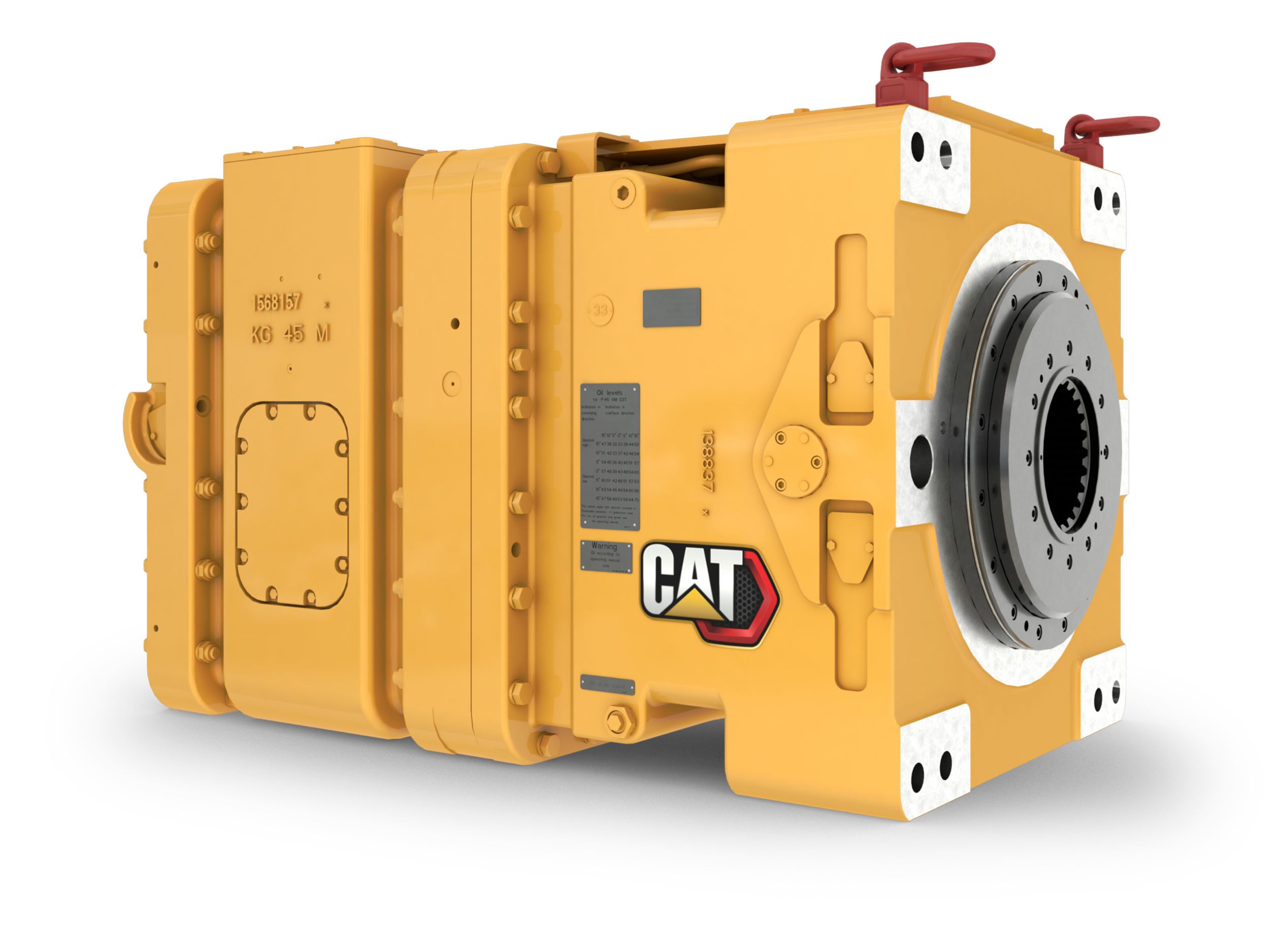

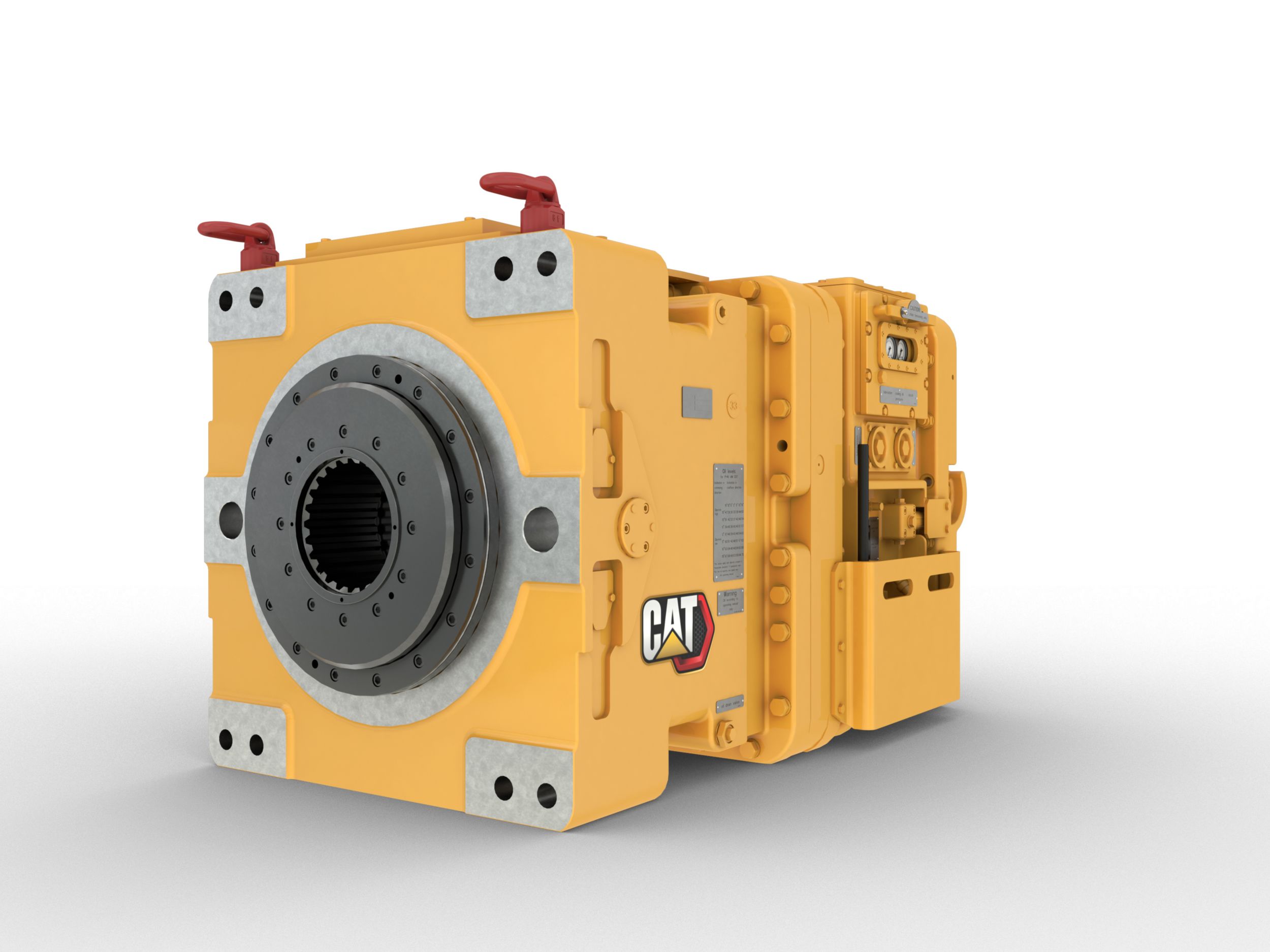

CST45 M Gearbox

.
🔍



Technical Specifications
360 View
Specifications
Maximum Input Speed - Motor Speed 1,782 rpm
Weight - Without Oil - In-line Drive System 15873 lb
Maximum Output Torque for a Short Duration (3 sec.) 331858 ft-lb
Typical Application
Description Chain Type Longwall Machinery like Armored Face Conveyors (AFC) and Plow Systems
Maximum Output Torque (for 3 sec) Tmax [N·m]
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 45 540 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 50 500 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 21 1,305 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39 1,142 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 16 1,305 hp
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 21 800 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 28 1,305 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 50 816 hp
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39 700 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 33 800 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 33 1,305 hp
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 28 800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 16 800 kW
P-45 M CST 331858 lb/ft
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 45 881 hp
Dimensions
Height 41.7 in
Length 66.8 in
Width 44.1 in
Requirements of Cooling Water
Maximum Water Inlet Temperature 25° C/298.15 K (77° F/298.15 K)
Required Cooling Water Quantity 7.9 gal/min
Capacity
Gearbox Weight - Without Oil 15873 lb
Oil Quantity 85 gal (US)
Shaft Design
Output Shaft with Internal Toothing DIN 5480-N 260×10×30×24
Input Shaft - Cylindrical DIN 5480-W 120×4
