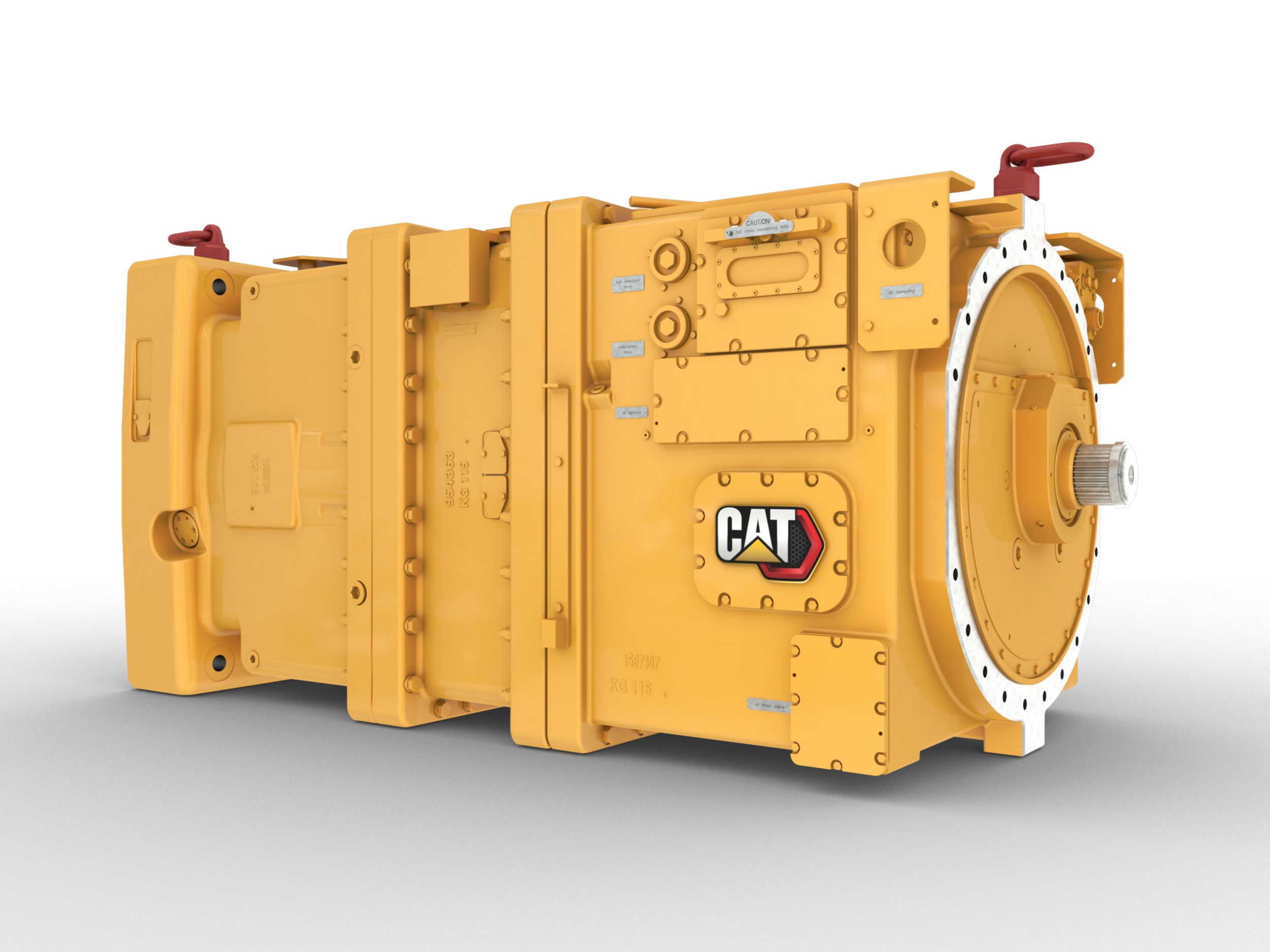

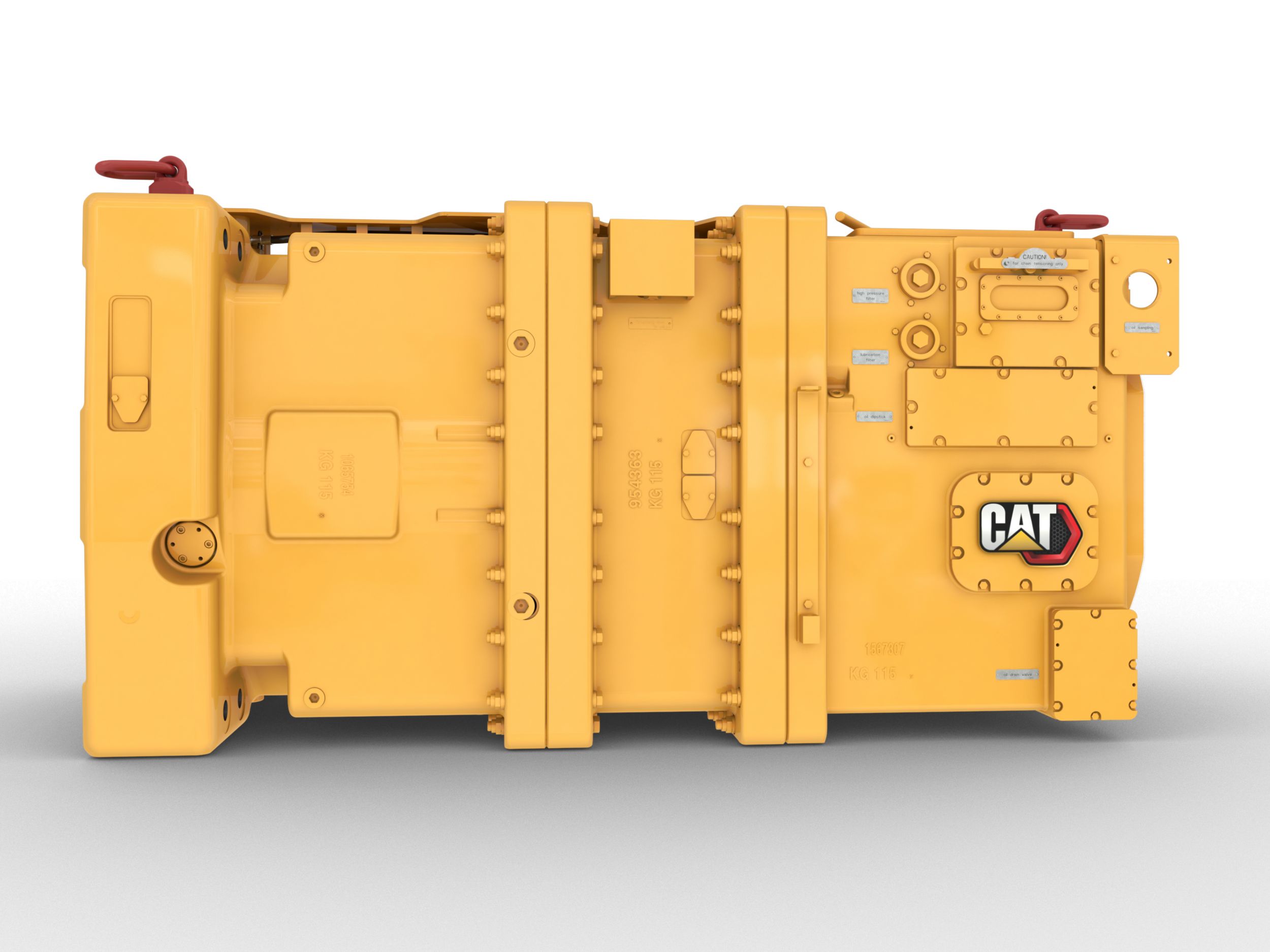

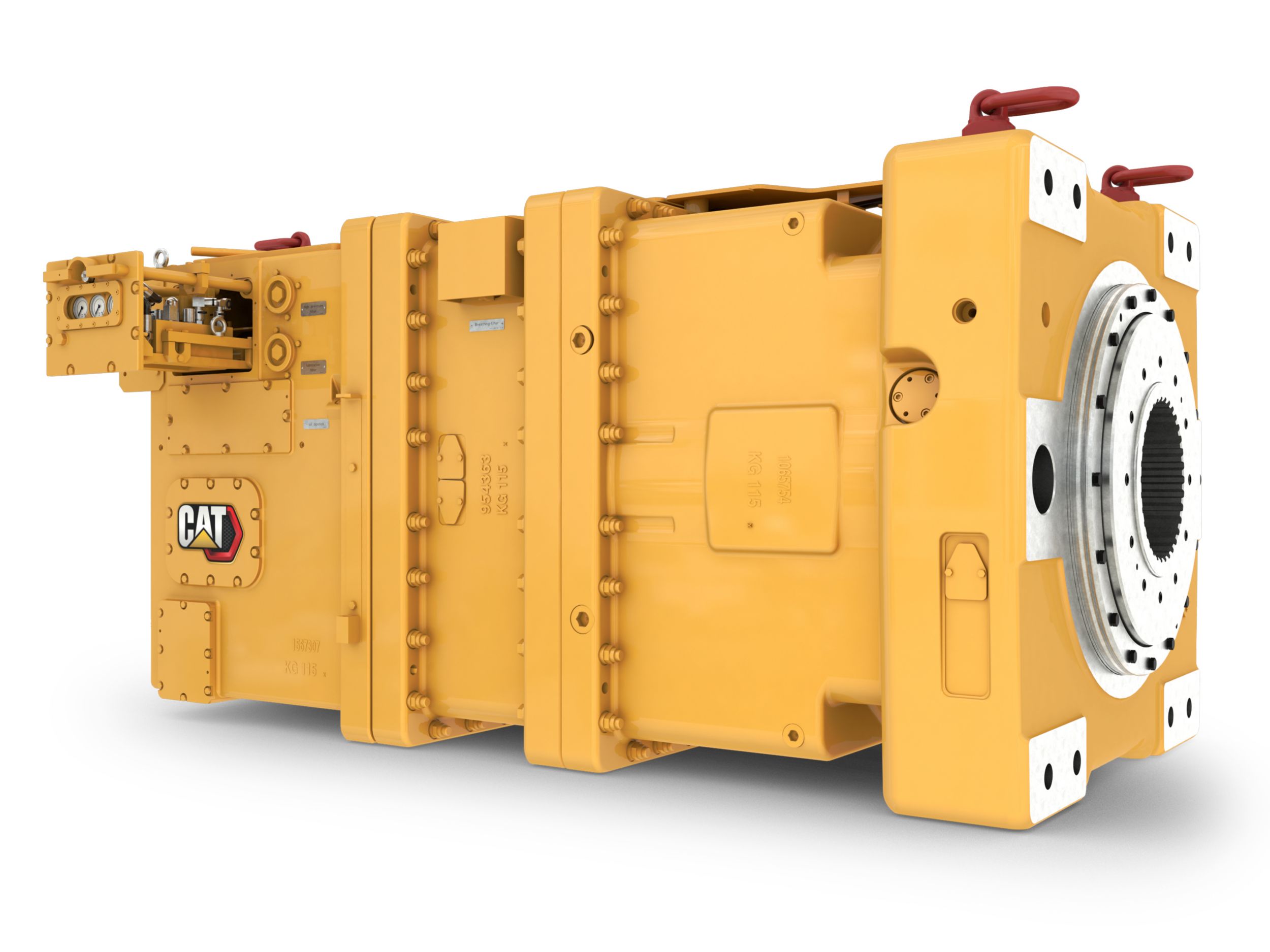

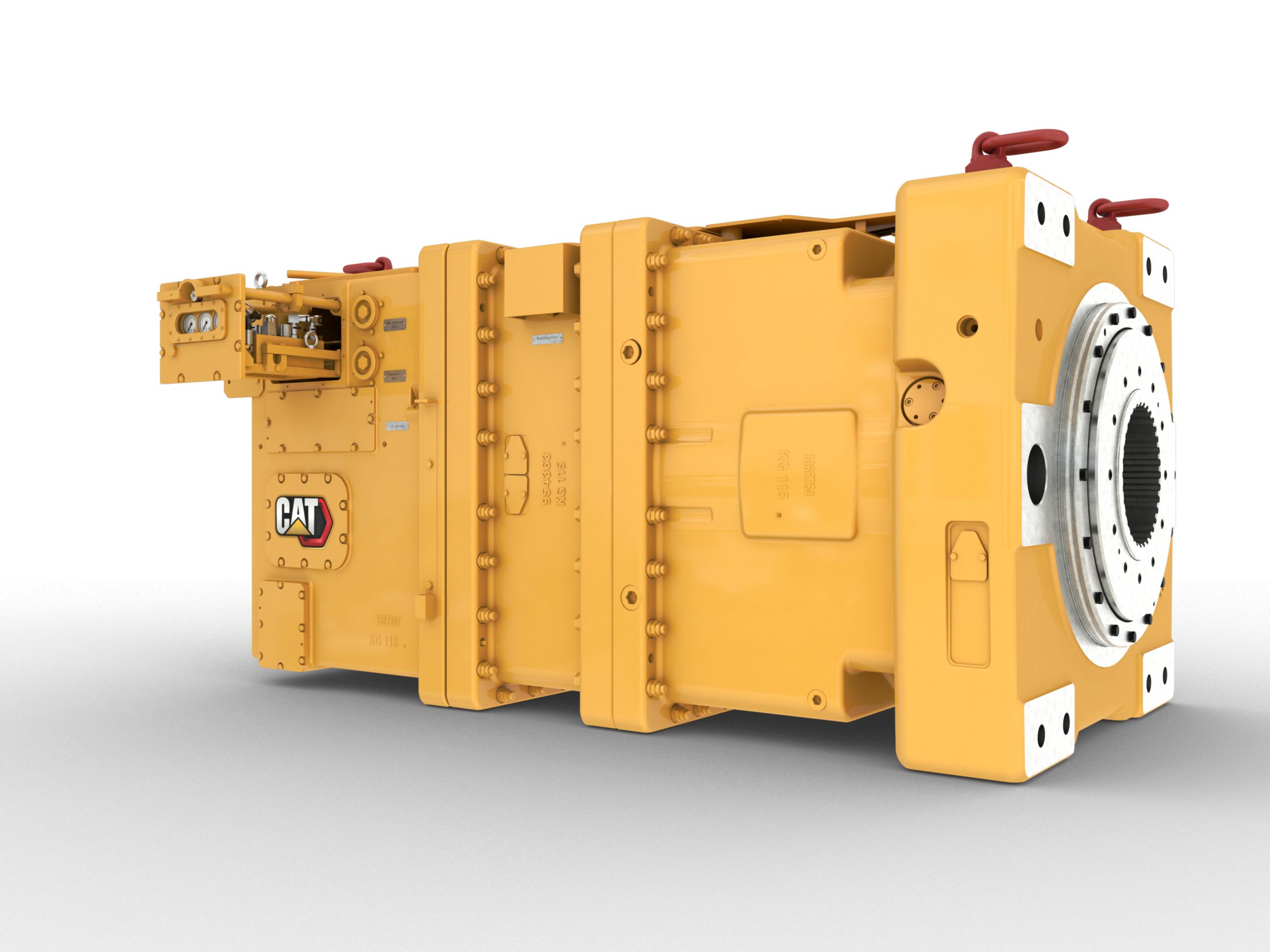

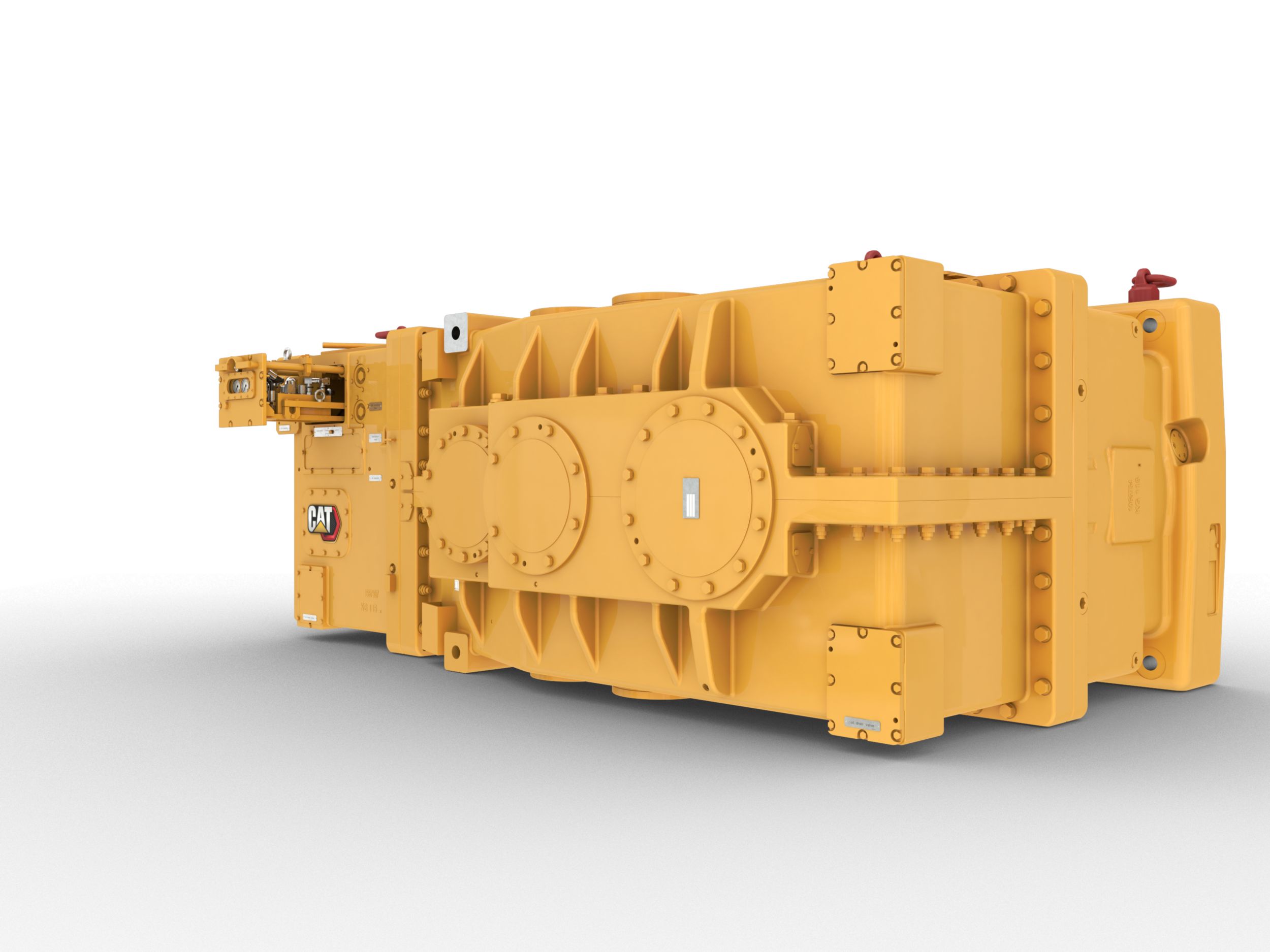

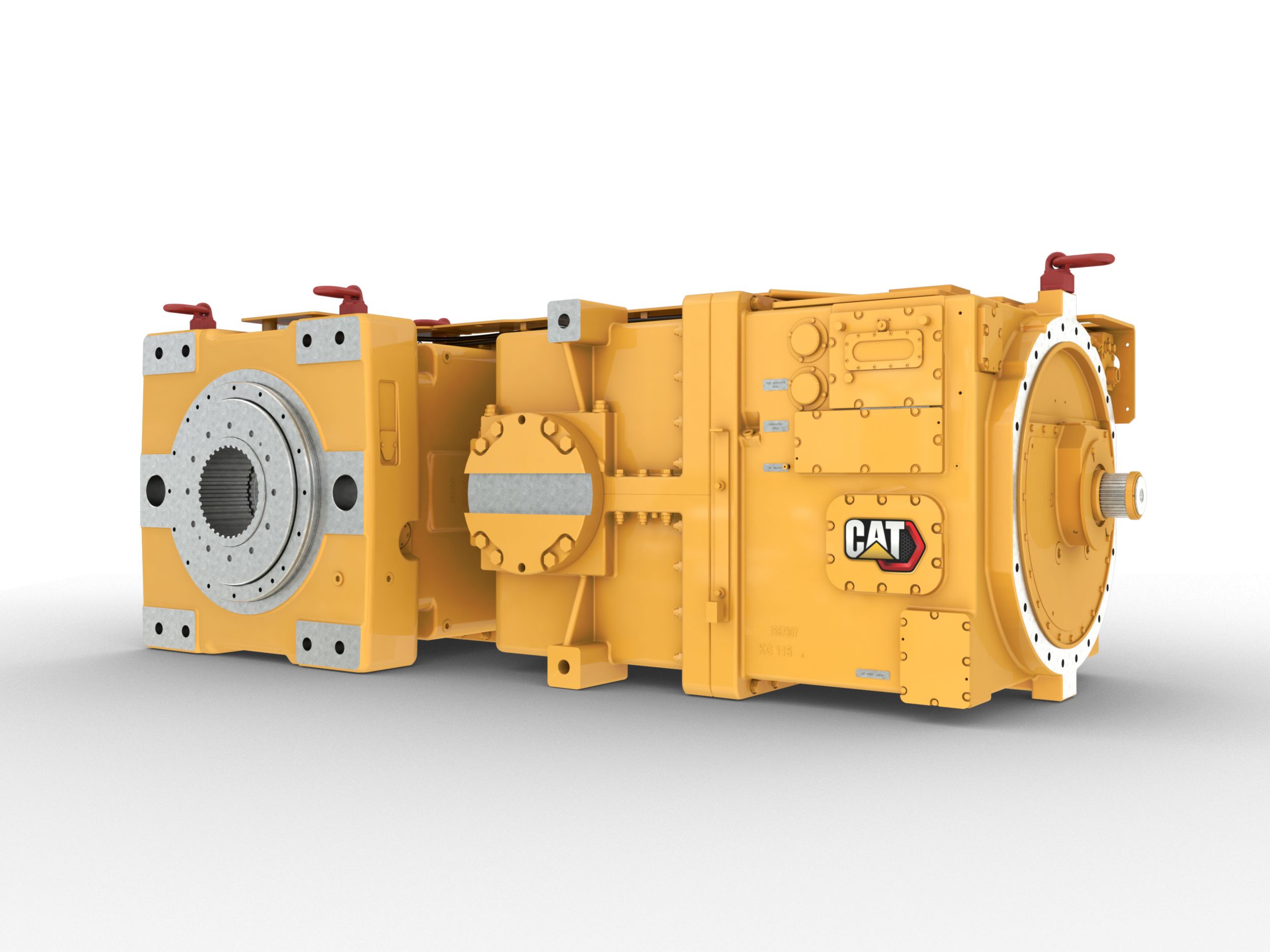

CST115 Gearbox

.
๐Ÿ”
๐Ÿ”
๐Ÿ”
๐Ÿ”
๐Ÿ”
๐Ÿ”
๐Ÿ”
๐Ÿ”
๐Ÿ”
๐Ÿ”



Technical Specifications
360 View
Specifications
Maximum Output Torque for a Short Duration (3 sec.) 848196 ft-lb
Maximum Input Speed - Motor Speed 1,782 rpm
Weight - Without Oil - In-line Drive System 36165 lb
Typical Application
Description Chain Type Longwall Machinery like Armored Face Conveyors (AFC)
Maximum Output Torque (for 3 sec) Tmax [Nยทm]
KP-115 CST/P-115 CST 848196 lb/ft
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39 1800 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39 2,937 hp
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 46 1800 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 46 2,480 hp
Dimensions
KP-115 CST - Length 141.6 in
P-115 CST - Width 55.1 in
P-115 CST - Height 51.1 in
KP-115 CST - Width 79.8 in
KP-115 CST - Height 51.1 in
P-115 CST - Length 110.6 in
Requirements of Cooling Water
Required Cooling Water Quantity 23.8 gal/min
Maximum Water Inlet Temperature 25ยฐ C/298.15 K (77ยฐ F/298.15 K)
Capacity
KP-115 CST - Gearbox Weight - Without Oil 52851 lb
P-115 CST - Oil Quantity 132 gal (US)
KP-115 CST - Oil Quantity 212 gal (US)
P-115 CST - Gearbox Weight - Without Oil 36145 lb
Shaft Design
Input Shaft - Cylindrical DIN 5480-W 140ร—4
Output Shaft with Internal Toothing DIN 5480-N 360ร—10
