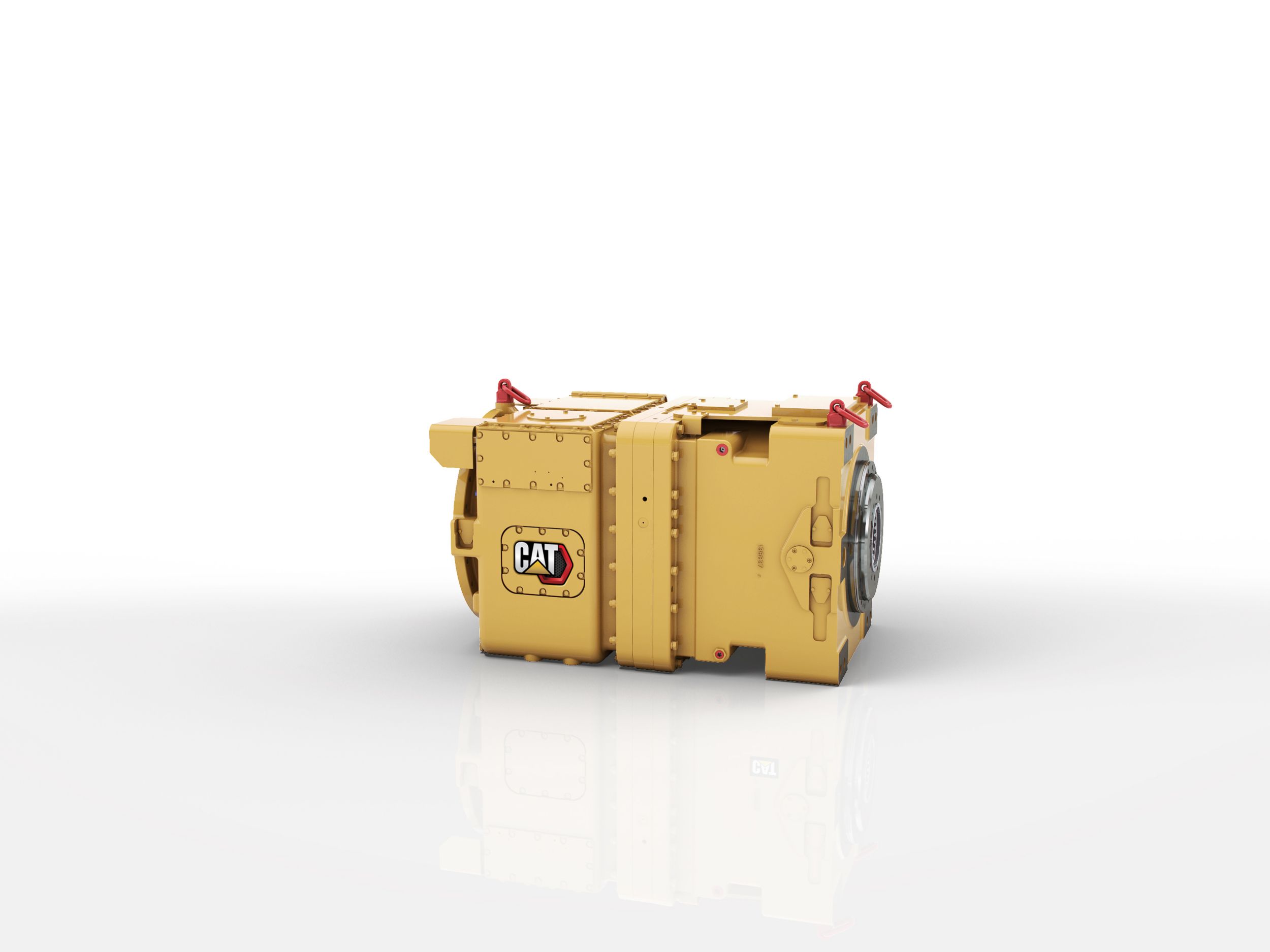

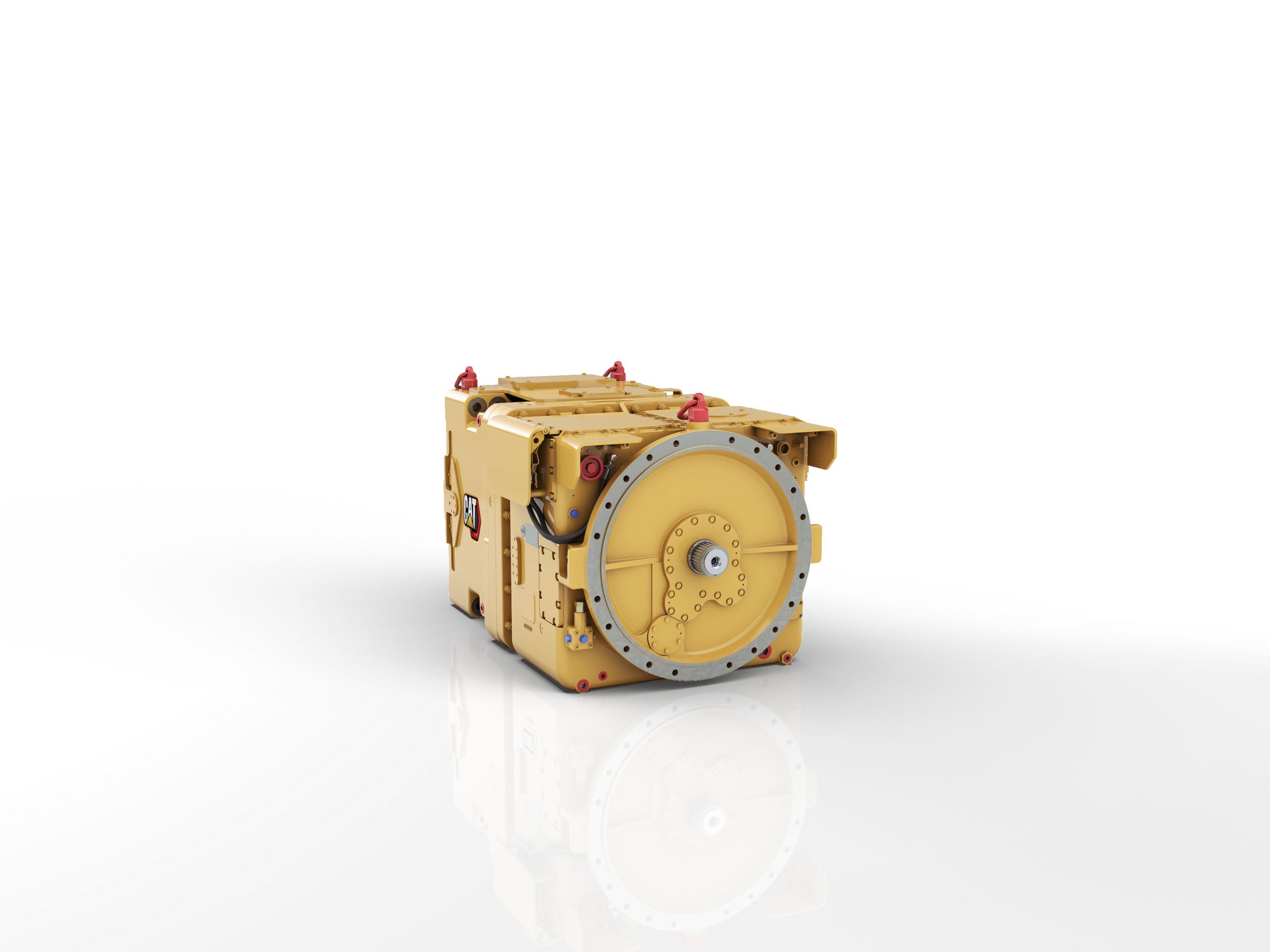

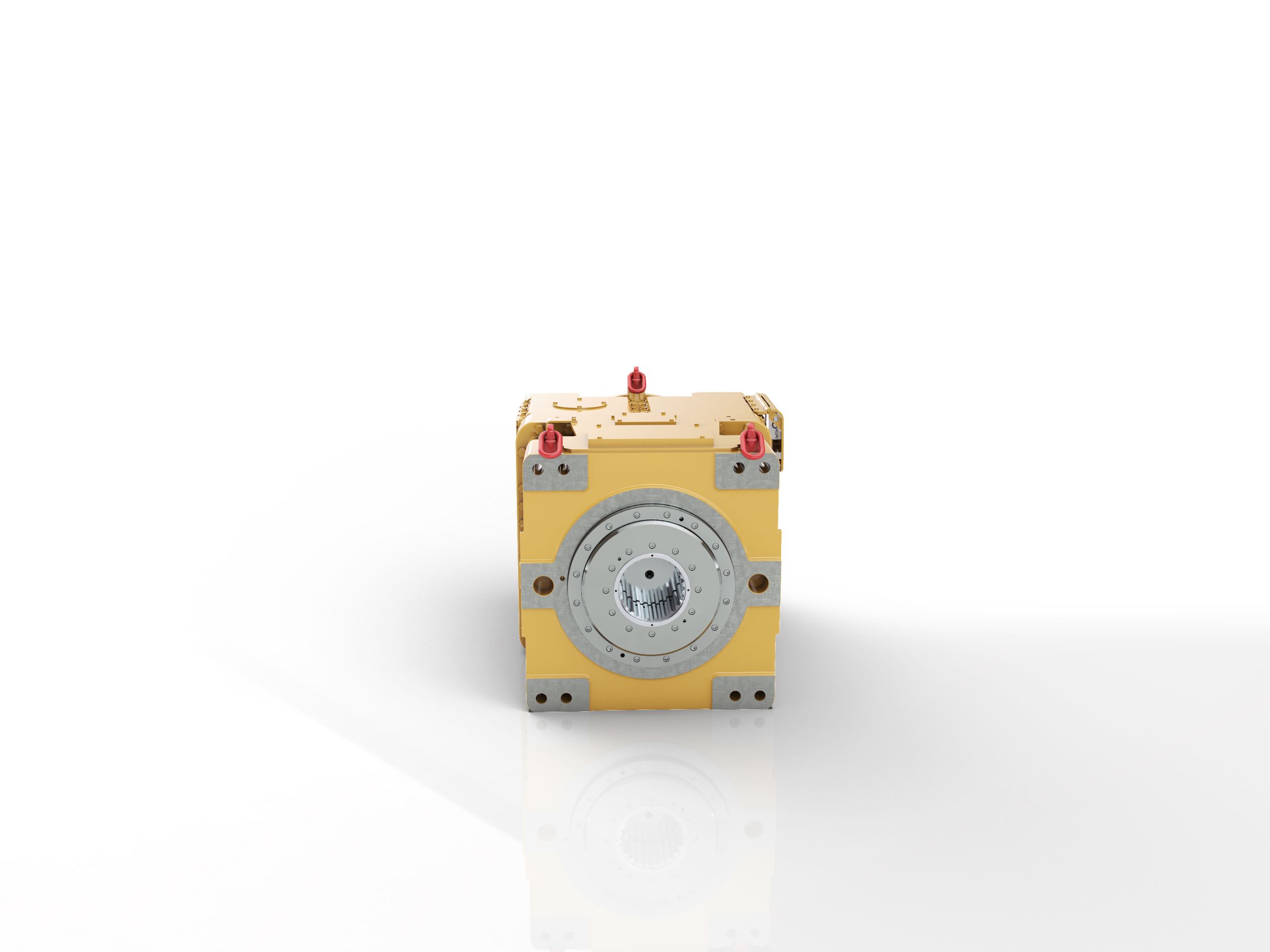

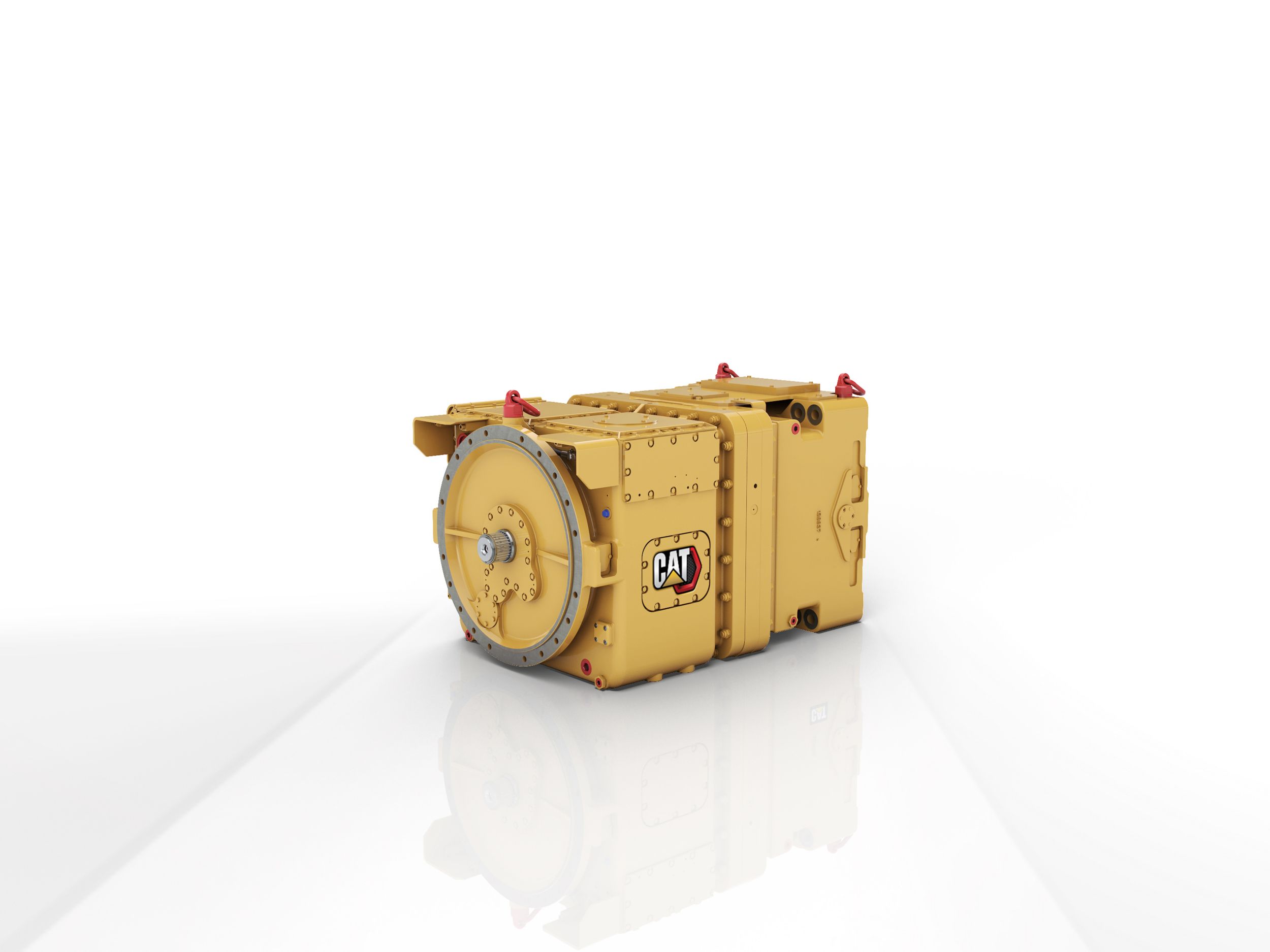

Cat® Controlled Start Transmission (CST) drive systems optimize the use of power for maximum production capacities. Ever more powerful systems require ever more horsepower, heavier chains and faster conveyor speed with maximum availability. What was needed was a truly intelligent drive system for face conveyors, which led our engineers to develop the Controlled Start Transmission (CST) drive system meeting the following requirements: • Currently available power up to 1200 kW (1,950 hp) per transmission unit • Safe startup of the face conveyor • Full utilization of the installed power • Highly durable components • Compact dimensions • High level of efficiency
| Specifications | |
| Maximum Input Speed - Motor Speed | 1,782 rpm |
| Weight - Without Oil - In-line Drive System | 13007 lb |
| Dimensions Right-/Left-angle Gearbox (KP Version) - Width | 50.6 in |
| Maximum Installed Power - kW 1,500 rpm @ 50 Hz (hp 1,800 rpm @ 60 Hz) at: i = 33:1 - 16:1 | 1300 HP |
| Dimensions In-line Gearbox (P Version) - Length - Without Drive Connection | 66.8 in |
| Dimensions Right-/Left-angle Gearbox (KP Version) - Length - Without Drive Connection | 109.1 in |
| Application | Chain type longwall machinery like face conveyors |
| Maximum Installed Power - kW 1,500 rpm @ 50 Hz (hp 1,800 rpm @ 60 Hz) at: i = 39:1 | 1100 HP |
| Oil Filling Quantities - In-line Drive System | 114 gal (US) |
| Dimensions In-line Gearbox (P Version) - Height | 41.7 in |
| Dimensions Right-/Left-angle Gearbox (KP Version) - Height | 41.7 in |
| Weight - Without Oil - Right-/Left-angle Drive System | 21500 lb |
| Maximum Installed Power - kW 1,500 rpm @ 50 Hz (hp 1,800 rpm @ 60 Hz) at: i = 50:1 | 800 HP |
| Dimensions In-line Gearbox (P Version) - Width | 44.1 in |
| Maximum Output Torque for a Short Duration (3 sec.) | 331858 ft-lb |
| Oil Filling Quantities - Right-/Left-angle Drive System | 193 gal (US) |
| Typical Application | |
| Description | Chain Type Longwall Machinery like Armored Face Conveyors (AFC) |
| Maximum Output Torque (for 3 sec) Tmax [N·m] | |
| Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39 | 700 kW |
| Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 24.5 | 800 kW |
| Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39 | 1,142 hp |
| Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 28 | 1,305 hp |
| Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 50 | 500 kW |
| Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 50 | 816 hp |
| Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 33 | 1,305 hp |
| Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 45 | 881 hp |
| Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 24.5 | 1,305 hp |
| Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 45 | 540 kW |
| KP-45/P-45 CST | 331858 lb/ft |
| Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 33 | 800 kW |
| Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 28 | 800 kW |
| Dimensions | |
| P-45 CST - Length | 66.8 in |
| P-45 CST - Height | 41.7 in |
| KP-45 CST - Width | 55.2 in |
| KP-45 CST - Height | 41.7 in |
| KP-45 CST - Length | 113.2 in |
| P-45 CST - Width | 44.1 in |
| Requirements of Cooling Water | |
| Required Cooling Water | 6.6 gal/min |
| Maximum Water Inlet Temperature | 25° C/298.15 K (77° F/298.15 K) |
| Capacity | |
| P-45 CST - Gearbox Weight - Without Oil | 13007 lb |
| P-45 CST - Oil Quantity | 114 gal (US) |
| KP-45 CST - Oil Quantity | 193 gal (US) |
| KP-45 CST - Gearbox Weight - Without Oil | 21385 lb |
| Shaft Design | |
| Input Shaft - Cylindrical | DIN 5480-W 120×4 |
| Output Shaft with Internal Toothing | DIN 5480-N 260×10×30×24 |
Startup
Benefits
- Staggered no-load motor startup: Minimum voltage drop in the electrical supply system
- Soft start of the face conveyor: Minimum stress on all drivetrain components at startup
- Synchronized startup and use of motor kinetic energy: Maximum total torque is available to facilitate startup of fully loaded conveyors
Load-sharing
Benefits
• Accurate load-sharing between the drives: Full utilization of available power, avoiding motor overheating and resultant downtime even with a chain showing different pitch along the face
Overload Protection
Benefits
• Instant, effective overload protection: Excessive chain forces and the risk of instant chain failures are virtually eliminated. Chains, sprockets and transmission units incur less wear because shock loads are absorbed.
Motor Braking Feature
In order to restart the drives safely, the operator has to wait a considerable time (up to 3 minutes) until the motors come to a standstill. Motor braking leaves an adjustable residual pressure on the CST clutch, minimizing the time for the motor to stop and the resultant downtime.
PMC™-D and PMC™-V
The PMC™-D is typically dedicated to each gearbox or drive individually. It contains all necessary hardware to control all functions of a drive system effectively. The unit can be connected to an internal mounted distribution box as typically used in CST gearboxes for the connection of sensors and actuators. The PMC™-V contains 24 keys for easy operation and a 4” VGA display. Graphical trends, warnings and any error messages can be displayed. The interface is available in various languages such as English, Chinese, German and Russian. The PMC™-V displays all available gearbox data including transducer values, status information, global and local parameters, network status, etc. Parameters can be easily changed using the 24-key numerical keyboard. Important system parameters are password protected.
V-Drive Visualization Software
The software also stores all CST data and undertakes analysis and trending of sensor values. It allows export of data to office applications such as electronic spreadsheets. Chinese, German and Russian versions of the software are also available.
Field Experience
Benefits
- Minimal slip during operation: Minimal energy and heat losses, maximum overall efficiency
- CST clutch mounted on low-speed output shaft: Ideal load discharge at the chain sprocket, very precise clutch control
- Integrated emergency operation feature: Fallback mode allows operation with semi-automatic mode and emergency mode
- Integrated CST drive system is considerably shorter than other drive systems: Less space required in narrow entries, very few external components
- High flexibility in operation: All parameters for startup, load-sharing and overload protection freely selectable
ICDS - Integrated CST Drive System
The ICDS has a special asynchronous motor from Baldor Electric Company, with rated power of currently up to 1200 kW (1,950 hp). The nominal motor running torque is 7640 N·m (5,635 lb-ft) at full nominal speed. The maximum AFC starting torque (breakdown torque) is 3 × 19 100 N·m (14,090 lb-ft). Space is provided for integrated protected mounting of PMC™-D controls and other accessories. The power cable can be equipped with a Victor plug. The ICDS allows direct measurement of motor power at the PMC™-D controls.
